Features



  1. Tested up to 600,000 cycles providing durability for everyday use
  2. Designed to operate at low forces to ensure that minimum force is required to withdraw latch or bolts
  3. Field sizeable to accommodate a range of door openings
  4. Optional dogging function available which allows the latch or bolts to be held in the withdrawn position
  5. Optional models available include pullman latches and alarm function
  6. Optional external trims available for key access.



Specifications

Chassis

Zinc die cast, Rods and crossbars: Steel

Door Type

Timber or Metal

Door Thickness

Suitable for doors between 32mm and 100mm thick

Body Material

Cast Iron

Size

Door width 665mm to 1300mm;

Door height 2500mm standard Extra long top shoot available for door heights up to 3350mm,

Stile width 78mm minimum with 13mm rebates 90mm minimum with 25mm rebates





Downloads

2105 Commercial Briton 370 Series Exit Devices Product Catalogue

Filename
2105 Commercial Briton 370 Series Exit Devices Product Catalogue.pdf
Size
585 KB
Format
application/pdf

2008 Commercial Briton 370 Push Bar Panic Latch Instrallation Instructions

Filename
2008 Commercial Briton 370 Push Bar Panic Latch Instrallation Instructions.pdf
Size
133 KB
Format
application/pdf

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Caring for Door Hardware Finishes.pdf
Size
84 KB
Format
application/pdf

2409 Allegion NZ Door Hardware Commercial Warranty

Filename
2409 Allegion NZ Door Hardware Commercial Warranty.pdf
Size
73 KB
Format
application/pdf

2105 Commercial Briton 370 Series Exit Devices Product Catalogue

Filename
2105 Commercial Briton 370 Series Exit Devices Product Catalogue.pdf
Size
585 KB
Format
application/pdf

No selected resources found. Try another category.

2008 Commercial Briton 370 Push Bar Panic Latch Instrallation Instructions

Filename
2008 Commercial Briton 370 Push Bar Panic Latch Instrallation Instructions.pdf
Size
133 KB
Format
application/pdf

No selected resources found. Try another category.

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Caring for Door Hardware Finishes.pdf
Size
84 KB
Format
application/pdf

2409 Allegion NZ Door Hardware Commercial Warranty

Filename
2409 Allegion NZ Door Hardware Commercial Warranty.pdf
Size
73 KB
Format
application/pdf

Providing safe and functional environments

For over 100 years the Briton brand has been synonymous with the very best in door controls and exit hardware.

It is a well-earned reputation based on a tradition of producing high quality, highly engineered products, designed to stand the test of time and to endure the rigours of life on buildings throughout the world.

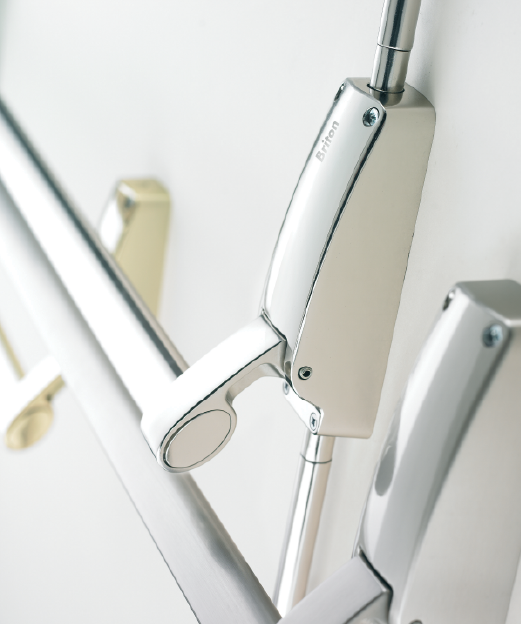

Briton 370 Series Reversible Panic Rim Latch
