Features



  1. Constructed of quality components, with forged brass levers and plates
  2. Heavy duty spring provides a smooth, fast return action of the lever and minimises droop extending the life of the furniture
  3. Lever hub reinforced to withstand high levels of abuse
  4. Shear off spindles supplied with lock to minimise potential lock damage
  5. Supplied as standard with triwing security screws
  6. Suitable for doors 35mm to 50mm.
  7. Furniture re-handed by simple relocation of stop block.
  8. Only available in Alpha or Leonardo levers.



Specifications

Material

Forged Brass

Door Type

Timber or Metal

Door Thickness

32mm to 50mm

Spindle Size

7.6mm

Dimensions

Plate height 171mm

Plate thickness 11mm

Plate width 47mm

Compatible locks/latches

Legge 990MF Series mortice locks.

FixingBack to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm.

Downloads

2105 Commercial Legge 700 Series Anti-Vandal Product Catalogue

Filename
2105 Commercial Legge 700 Series Anti-Vandal Product Catalogue.pdf
Size
881 KB
Format
application/pdf

1312 Commercial Legge 500 and 700 Series Furniture Installation Instructions

Filename
1312 Commercial Legge 500 and 700 Series Furniture Installation Instructions.pdf
Size
127 KB
Format
application/pdf

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2409 Allegion NZ Door Hardware Commercial Warranty

Filename
2409 Allegion NZ Door Hardware Commercial Warranty.pdf
Size
73 KB
Format
application/pdf

2105 Commercial Legge 700 Series Anti-Vandal Product Catalogue

Filename
2105 Commercial Legge 700 Series Anti-Vandal Product Catalogue.pdf
Size
881 KB
Format
application/pdf

No selected resources found. Try another category.

1312 Commercial Legge 500 and 700 Series Furniture Installation Instructions

Filename
1312 Commercial Legge 500 and 700 Series Furniture Installation Instructions.pdf
Size
127 KB
Format
application/pdf

No selected resources found. Try another category.

2310 Allegion Door Hardware Maintenance

Filename
2310 Allegion Door Hardware Maintenance.pdf
Size
109 KB
Format
application/pdf

2409 Allegion NZ Door Hardware Commercial Warranty

Filename
2409 Allegion NZ Door Hardware Commercial Warranty.pdf
Size
73 KB
Format
application/pdf

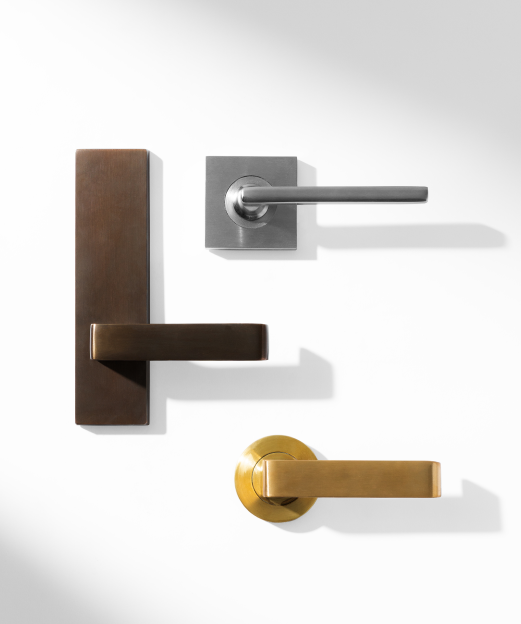

Security, durability and style
